KIM TECHNOLOGIESDefense
KIM Kayseri İleri Malzemeler Sanayi ve Teknoloji Anonim Şirketi
Karpuzsekisi Mahallesi İş. Cadde No: 44/1 Hacılar/Kayseri/Türkiye
Added Value & Unique Solutions for Every Platform
Company Overview
Advanced Ceramics & Ballistic Protection.
KIM Technologies operates state-of-the-art facilities producing high-performance ceramics including Boron Carbide (B₄C), Silicon Carbide (SiC), Titanium Diboride (TiB₂), Alumina (Al₂O₃), and composites. Their focus delivers the lightest, most effective ballistic protection for aircraft and helicopters.
Karpuzsekisi Mahallesi İş. Cadde No: 44/1 Hacılar/Kayseri/Türkiye
Key Certifications
ISO 9001:2015
Quality Management
Technical ceramics and ballistics quality management system certification.
ISO 14001:2015
Environmental Management
Environmental management standard for sustainable defense manufacturing.
ISO/IEC 27001:2013
Information Security
Information security management for sensitive defense program data.
ISO 45001:2018
Health & Safety
Occupational health and safety management across production operations.
MoD Approved Supplier
Turkish Ministry of National Defense
Approved Supplier Certificates for defense production and manufacturing.
Facility Security Clearance
FSC
Facility Security Clearance for sensitive defense program access and execution.
4-Hour Install / Remove
Zero-Airframe-Modification Mounting
Aviation Ballistic Solutions
Modular, Lightweight Protection for Air & Rotary Platforms.
KIM armor systems provide modular, lightweight protection using advanced Boron Carbide and Silicon Carbide ceramics. Designs support complex geometries with 3D CAD and finite element analysis.
Transport Aircraft
- CASA CN-235
- C-130 Hercules
- C-160 Transall
Helicopters
- UH-1
- UH-60
- Cougar
- AH-01 — base/side armor, crew seats, engine, radome, transmission
Protection Areas
Cockpit, transport sections, doors, and liquid oxygen systems.
Technical Specifications
Validated Protection Performance.
| Armor Type | Standards | Weight | Thickness |
|---|---|---|---|
| Type-1 Armor | NIJ Level III, STANAG 2920 | < 20 kg/m² | 22 mm |
| Type-2 Armor (Aircraft) | NIJ Level IV, STANAG 2920, MIL-PRF-46103 Type 2 Class 2 | < 36 kg/m² | 21 mm |
| Type-2 Armor (Helicopter) | NIJ Level IV, STANAG 2920, MIL-PRF-46103 Type 2 Class 2 | < 35 kg/m² | 20 mm |
Advantages
- 3D/curved designs with no aircraft modifications (including LOX lines)
- Installation/disassembly in ~4 hours by basic technicians
- Interchangeable parts across platforms
- MIL-STD-810 environmental resistance (-55°C to +85°C)
- FAR 25.853 flammability compliance
- 60-month warranty + 10-year maintenance guarantee
- 24-hour repair response
~4h
Install / Disassembly
By basic technician teams
60mo
Warranty
Plus 10-year maintenance guarantee
-55°
To +85°C
MIL-STD-810 environmental resistance
24h
Repair Response
Rapid field support assurance
Production Technology
From Powder to Precision Armor.
KIM Technologies controls the full ceramic production chain — from raw powder preparation through high-temperature sintering and final ballistic assembly.
- Powder production
- Micronization
- Forming
- High-temperature sintering (up to 2,800°C)
- Hot pressing
- Reaction bonding
- HIP / HPDV capabilities
Vertical Integration
Domestic Boron Reserves · Full Process Control
Material Comparison
Engineering-Grade Ceramic Selection.
| Material | Density (g/cm³) | Hardness (Knoop) | Key Advantage |
|---|---|---|---|
| Boron Carbide (B₄C) | 2.5 g/cm³ | 3200 Knoop | Lightweight, top ballistic |
| Silicon Carbide (SiC) | 3.2 g/cm³ | 2400 Knoop | Balanced performance |
| Alumina (Al₂O₃) | 3.9 g/cm³ | 1700 Knoop | Cost-effective |
Product Portfolio
Fielded Armor Systems.

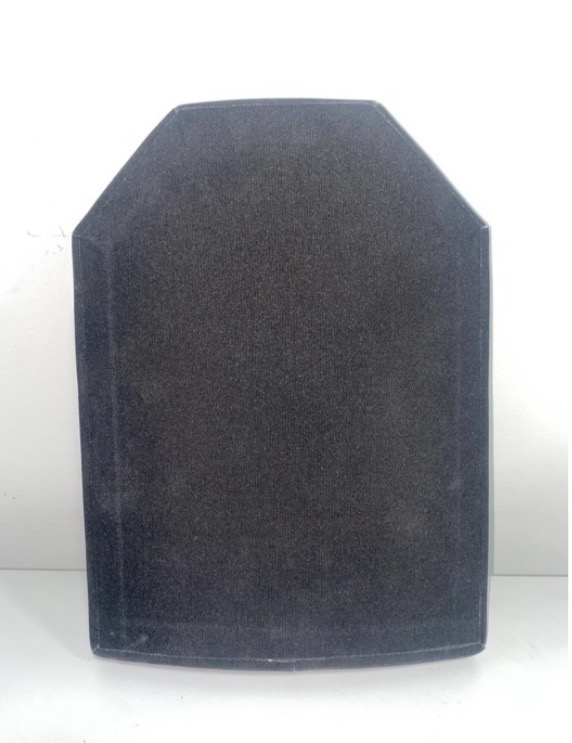

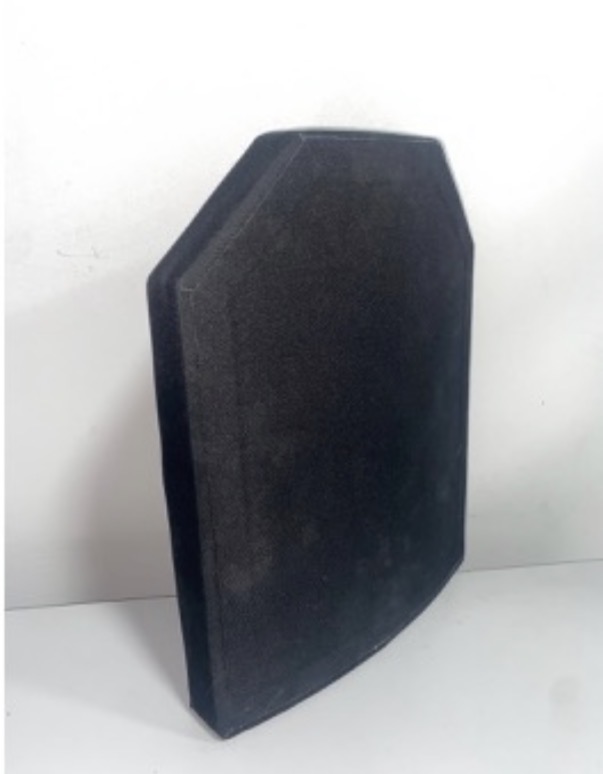

KIM RF3 Alumina · Single-Curve Geometry
RF3 Protection Platform · Validated Engineering
Strategic Engagement
Connect to Proven Defense Capability.
As your strategic advisor, Elevation 4 You connects government stakeholders and prime contractors to these proven capabilities under strict confidentiality and NDA protocols.
